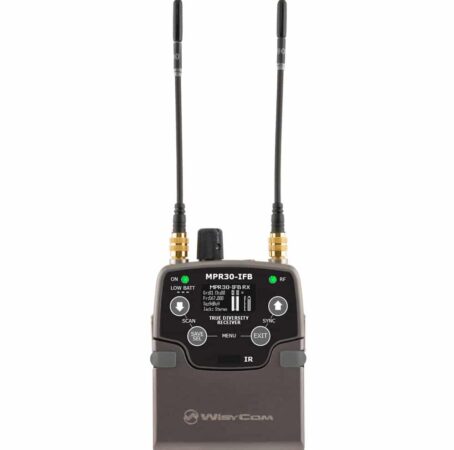

Wisycom MPR30-IFB Wideband True Diversity IFB Receiver

MPR30 IFB is a compact true diversity receiver designed for professional IFB applications. This receiver features a unique wide-band tuning range up to 232 MHz and a real TRUE DIVERSITY reception that ehnances the coverage and makes it ideal as IFB is a singlefrequency network. The output audio stage is especially design to have maximum audio peak-dynamic of 200 mWatt. Very easy and versatile thanks to its Oled display, navigation button controls, infrared and automatic scan. Battery management is very flexible since MPR30 allows use of standard battery pack: – 2 AA NiMH or Alkaline – C3-V3 battery pack – KLIC 8000 or CR-V3R lithium (i.e. DR9708 duracell) Charging can be done with dedicated charger or through the integrated micro-usb-B connector.

Related Products

Canon KJ20x8.2B KRSD
Fujinon HA23X7.6
Fujinon HA14x4.5BERM

Contact the Equipment Rental and Sales team

No data was found

Back to Broadcast Equipment Rental & Sales

Next up

Post Production Rental & Sales​
SERVICES
Production & Content Live Coverage Managed Services Flypack Solutions OB Trucks, Mobile Units & DSNGs Production Centres & Studios Remote Production Speciality Cameras Post Production Equipment Rental & Sales Systems Integration

Get in touch

Wisycom MPR30-IFB Wideband True Diversity IFB Receiver

Features

Up to 232 MHz bandwidth in 470/798 MHz range TRUE DIVERSITY RECEIVER with 2 whip antennas NARROW-BAND FM modulation to enhance noise immunity and coverage 200 mW peak audio power Separate release/attack compander Miniature design with 2 AA battery pack integrated (body-pack form factor) or rechargeable lithium pack Easy to use thanks to an OLED display Dedicated function buttons & frequency scan function Automatic transmitter programming thru infrared and micro-USB

Wisycom MPR30-IFB Wideband True Diversity IFB Receiver

Specifications

Frequency ranges : N  option 470 ÷ 700 MHz M  option 566 ÷ 798 MHz other ranges are available on request in 470÷798 MHz

Switchable channels : 40 groups of 60 channels fully user programmable.

Switching-window : up 232 MHz.

Frequencies : microprocessor controlled frequency synthesizer circuit, with 25 kHz minimum step. The frequencies can be easily PC reprogrammed with the optional UPK 300E Programming Kit.

Frequency error : < ± 2.5 ppm, in the rated temperature range.

Temperature range : -10 ÷ +55 °C. • Modulation : narrowband FM

Max deviation : ±40 kHz • “A” / “B” antenna in : with sturdy connectors.

Antenna input imp. : 50 ohm sma type (SWR < 1:2; typ. 1:1.4).

Sensitivity :  2 µV ( 6 dBµV), for SND/N > 52 dB; in the whole switching-window

Co-channel rejection : > 2.5 dB. • Adjacent chan. Sel. : > 80 dB typical (for channel spacing ≥ 200 kHz).

Spurious rec. Rej. : > 100 dB. • IF image rejection : > 90 dB. • Intermod. rejection : > 76 dB. • IIP3 : > +10 dBm typical.

Spurious emissions : < 2 nW (typical = 0.1 pW). • Noise Reduction :  ENR (Wisycom Extended-NR) • AF bandwidth : 30 Hz ÷ 12 kHz.

Frequency response : ± 0.5 dB in the 30Hz ÷ 12 kHz range

Distortion : 0.3 % typical. • SND/D ratio : 90 dB typical

Powering : 2 x IEC-LR6 1.5V size-AA alkaline or rechargeable lithium elements

Weight : 100 g approx. without batteries

Headphone-output : Stereo Plug 3.5mm(TRS) Locking (M6 x 0.5 thread) with 2 X 100mW @ 32 Ohm

Battery life : approx.. 5 hours (alkaline batteries), 8 hours (lithium batteries)

Wisycom MPR30-IFB Wideband True Diversity IFB Receiver

Downloads

MPR30 IFB en u03 A5
