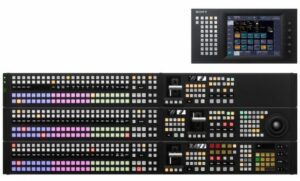

Sony MVS-8000G 4ME Multi Format Video Switcher

This multi-format video switcher includes a built in simple DME on every keyer and optional internal format converters.

The MVS-8000G series production switcher offers content producers previously unseen levels of performance, flexibility and integration. This multi-format production switcher builds on the success of the MVS-8000A and DVS-9000 systems and gives operators unrivalled multi-format performance for a production switcher.

Contact the Equipment Rental and Sales team

Jamie 2
Jamie Brewer
Head of Broadcast and Post Production Rental

Next up

SERVICES
Sony MVS-8000G 4ME Multi Format Video Switcher

Features

  • Multi-format capability — 1080i/60, 59.9 4, 50, — 1080p/30, 29.97, 25, 24, 23.976, — 720p/59.94, — 480i/59.94, — 576i/50
  • 2-, 3- and 4-Mix/Effects configurations
  • Layout free control panel
  • Creative M/E functionality — Four full function keyers per M/E, — Multiple M/E Program out configurations, — 14 individual wipe pattern generators per M/E
  • Independent M/E functionality — 4:3 / 16:9, Crosspoint Assignments and Bus Toggle on/off, — Snapshots, Keyframe and various setups
  • Up to 80 inputs and 56 outputs (including 8 monitor outputs)
Sony MVS-8000G 4ME Multi Format Video Switcher

Specifications

Power requirements
100 to 240 V ± 10% AC 50/60 Hz
Current consumption
28 A to 11.8 A (when equipped with all installable option boards)
Operating temperature
5ºC to 40ºC (41ºF to 104ºF)
Performance guaranteed temperature
10ºC to 35ºC (50ºF to 95ºF)
Storage temperature
– 20ºC to 60ºC (- 4ºF to 140ºF)
Operating humidity
10% to 90%
Dimensions (W/H/D)(excluding projections)
440 x 443.6 x 582.9 mm
Mass
Approx. 72 kg (158 lb 12 oz) (when equipped with all installable option boards)
