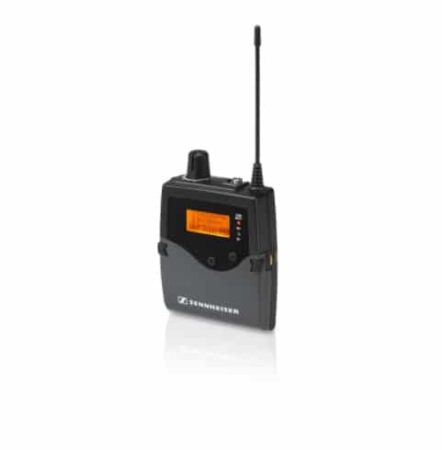

Sennheiser EK 2000 IEM Wireless Microphone Live Receiver

The receiver of this in-ear wireless monitoring set works with Adaptive Diversity Technology. The cable of the earphone is used as second antenna. Thus, significantly fewer dropouts can be achieved. It is compatible with all In Ear headphones with a 3.5 mm jack plug and provides an authentic picture of the live sound, allowing perfect performance control.

Contact the Equipment Rental and Sales team

Jamie 2
Jamie Brewer
Head of Broadcast and Post Production Rental

Next up

SERVICES
Sennheiser EK 2000 IEM Wireless Microphone Live Receiver

Features

  • Robust all-metal housing

  • Up to 3000 frequencies in up to 75 MHz switching bandwidth

  • 20 fixed frequency banks with up to 32 compatible presets

  • 6 banks with up to 32 tunable channels

  • Adaptive Diversity technology for high reliability

  • Pilot tone squelch can be set in 2 dB steps for interference-free reception

  • Frequency scan feature searches for available reception frequencies

  • Wireless synchronization of receiver parameters from transmitter

  • User-friendly menu interface with a backlit graphic display

  • HDX compander for crystal clear sound

  • Enhanced audio frequency response

  • Backlit graphic display

  • 4-stage battery status display

  • Power supplied by BA2015 rechargeable batteries or AA batteries/rechargeable

  • Charging contacts for recharging BA2015

  • Auto-lock feature to prevent settings from being changed accidentally

  • Hi Boost, adjustable limiter, stereo/focus mode, selectable balance on receiver

  • For universal application due to extensive range of accessories

Sennheiser EK 2000 IEM Wireless Microphone Live Receiver

Specifications

  • RF frequency range
    470 – 558 MHz
    516 … 865 MHz
  • Frequency range
    558 … 626 MHz / Europe
    626 … 698 MHz / Europe
    606 … 678 MHz / UK
    516 … 558 MHz / US
    516 … 558 MHz / Europe
    790 … 865 MHz / Europe
    718 … 790 MHz / Europe
    790 … 865 MHz
    718 … 790 MHz
    626 … 698 MHz
    558 … 608 MHz / US
  • Dimensions
    82 x 64 x 24 mm
  • Presets
    max. 32
  • Frequency response
    25 – 15000 Hz
  • Jack plug
    3,5 mm Jack
  • Weight
    200 g
  • Signal-to-noise ratio
    > 90 dB(A)
  • Switching bandwidth
    max. 75 MHz
  • Operating time
    4 – 6 h
  • Modulation
    FM, MPX-stereo
  • Carrier frequencies
    max. 3000
  • Squelch threshold
    off, 5 … 25 dBμV in 2 dB steps
  • Audio-Output-Power
    100 mW @32 Ω
  • Operating voltage (stand alone)
    2 x 1,5V AA
