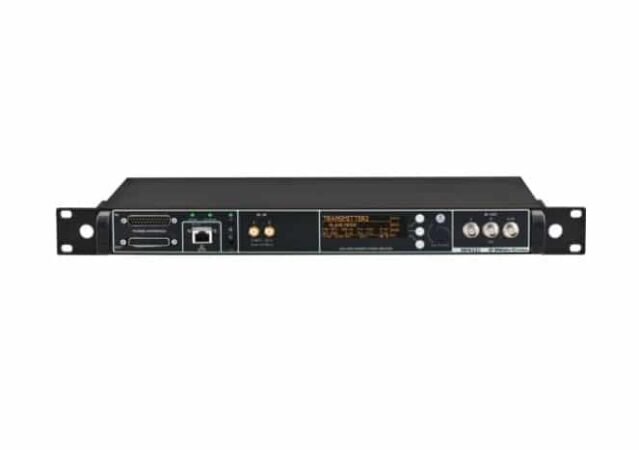

Wisycom MPA221 High Linearity Dual Amplifier

MPA221 is a dual amplifier especially designed to be a companion of the MTK952. In a typical configuration MTK952 generate the local carrier and also (in master mode) a reference signal in isofrequency that can be transported thru coax of fiber (i.e. with MFL) and used as source for MPA221 to create a remote RF transmission (single frequency areas).

MPA221 as a frequency meter to lock on source carrier and to setup properly all internal filtering. Thanks to an integrated calibrated direction coupler MPA221 is able to measure the real transmitted power and uses this feedback to proper setup the gain and protect in case of antenna failure.

Maximum output power is 2 watt on each of 2 separated output or 1 watt per carrier on 1 output combined. The units is designed with a low profile and all connectors in front to be easily integrated into plastic case for remote application

Contact the Equipment Rental and Sales team

Next up

SERVICES
Wisycom MPA221 High Linearity Dual Amplifier

Features

Slave module with frequency meter for single frequency application

330 MHz Bandwidth

Quadruple in quadrature output stage for high rejection to intermodulation

Output power up to 2 Watt (/2W0 option) or 1 Watt with combined channels

2:1 power combiner integrated (software selectable)

SWR (Stationary Wave Ratio) sensing on antenna outputs with control loop to set power output

Remote Monitor/configuration thru Ethernet port

Compact profile with connector on front to be easily integrate on plastic cases for remote application

Dual DC INPUT: 10-28Vdc thru DB25 connector

Wisycom MPA221 High Linearity Dual Amplifier

Specifications

Switchable channels 2400 allocated by 40 groups of 60 channels quickly selectable with dedicated buttons 2

Frequency bandwidth 470-800 MHz R

Switching bandwidth 330 MHz tunable in 5 kHz steps

Temperature range -10 ÷ +55 °C RF output power Selectable from 10mW to 2000mW Max

RF output power MPA221-EU: 200mW MPA221-EUX: 2Watt [NOTE]

RF power can be limited on frequency base accordingly to specific country restrictions (software based) antenna outputs 3 BNC type female connectors: • transmitter1 • transmitter2 • combination of transmitter 1 and transmitter2 M

RF inputs 2xSMA connectors RF impedance 50 Ω

Spurious emissions < 2 nW (in the transmitter bandwidth) Display 64 x 256 OLED (yellow)

Configuration/monitor interfaces 10/100 Base TX Ethernet port on RJ45 connector

Power supply 10-28Vdc thru DB25 connector

Dimensions 19”/½U 483 x 215 x 44 mm (WxDxH) with brackets

Weight 2.7Kg
