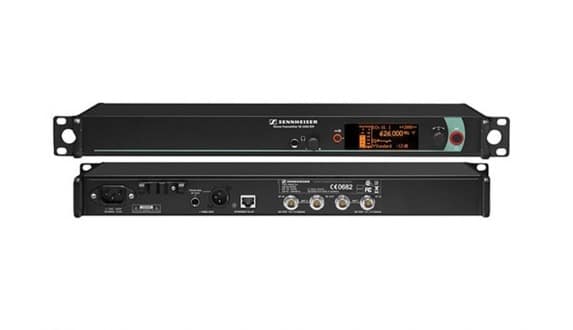

Sennheiser SR2000 IEM Monitoring Transmitter

Rugged, reliable, and flexible – in short: professional. With SR 2000, you can choose from 26 frequency banks with up to 32 channels. The channels can be user-programmed six of the frequency banks. Three switchable RF output powers (10, 30, and 50 mW – additionally 100 mW in the US version) provide greatest artistic and technical freedom.

Contact the Equipment Rental and Sales team

Jamie 2
Jamie Brewer
Head of Broadcast and Post Production Rental

Next up

SERVICES
Sennheiser SR2000 IEM Monitoring Transmitter

Features

20 fixed frequency banks with up to 32 compatible presets in up to 75 MHz switching bandwidth and 6 user banks

Audio loop-out jack

5 Band graphic EQ

Rugged 19“ all-metal housing with integrated power supply unit

Ethernet for monitoring and control using Sennheiser WSM Mac or PC software

Extended AF requency response (25… 15000 Hz)

Receivers can be configured in the transmitter menu and can be synchronized via the infrared interface

Sennheiser SR2000 IEM Monitoring Transmitter

Specifications

The device shall be a stationary stereo transmitter for use with a companion stereo receiver as part of a high reliability stereo wireless radio frequency transmission system. The stationary stereo transmitter shall operate within a RF frequency range of 516 – 865 MHz in 20 fixed frequency banks and 6 user banks with a maximum of 32 presets with a switching bandwidth of maximum 75 MHz tunable in 25 kHz steps; carrier frequencies shall be maximum 3000. Frequency stability shall be ±10 ppm. Nominal/peak deviation shall be ±24 kHz/±48 kHz. A compander feature shall be included and shall be Sennheiser HDX system. The transmitter shall include MPX pilot tone (frequency / deviation) of 19 kHz / ±5kHz. Audio frequency response shall be 25 – 15,000 Hz; total harmonic distortion (THD) shall be <0.9 %. Audio frequency input level shall be +22 dBu (maximum, balanced). Signalto-noise ratio shall be > 90 dB.

The stereo audio input shall utilize two discrete (left/right) electronically-balanced combination female XLR-3 and ¼“ audio sockets; the audio output shall utilize a balanced ¼“ (6.3 mm) audio socket; one audio loop output shall be provided utilizing a balanced ¼“ (6.3 mm) audio socket. A stereo headphone output with local level control shall be provided on the front panel and shall utilize a ¼“ (6.3 mm) stereo audio socket. Menu-based software adjustments shall be made using a backlit LCD user display; associated receivers shall be configured in the receiver menu and synchronized with the transmitter via an integrated infrared interface. A 5-band graphic equalizer shall be provided. One 50O BNC connector shall provide the attachment point for the main transmitter antenna. RF output power shall be selectable at 10 mW (Low), 30 mW (Standard), 50 mW (High) and 100 mW (Maximum, XP version only). An Ethernet port (RJ45) shall be provided to allow remote network-based monitoring and control of the transmitter using Sennheiser Wireless System Manager Mac or PC software. Power shall be supplied to the transmitter by the internal power supply with auto-switching mains voltage of 100 – 240 VAC at 50/60 Hz. Current draw shall be maximum 0.1 A. The transmitter chassis shall be fabricated from metal and shall be capable of mounting in a standard 19“ equipment rack without additional hardware; case dimensions shall be approximately 8.54“ x 19.02“ x 1.69“ (217 x 483 x 43 mm). Weight shall be 91.71 oz (2600 grams). Operating conditions shall be ambient temperature +14°F to +131°F (-10°C to +55°C). The stationary stereo transmitter shall be Sennheiser model SR 2000.
